DÉNA AÉROSPATIALE

Conception, développement et fabrication des avions UAVs, ultraleger, leger et aussi vente et entretien des moteurs turbojets.


MOTEURS À TURBINE SWIWIN


Design compact
Démarreur sans balais et fonctions de télémétrie
ECU de redémarrage automatique 32 bits
Terminal de données à écran couleur
Roue de compresseur CNC
réponse très rapide de l'accélérateur
Meilleur rapport coût/performance
Construire dans l'écran FOD
Couleur argent/or rose can




SW 60B

Thrust 60N
RPM Range 50,000 - 150,000
EGT 650 C
Fuel Consumption 200g
Fuel kero or diesel
Lubrication 5% kero 3% diesel
Start full autostart
Restart auto restart
Weight 783g
Diameter 84mm
Length 203mm
Maintenance Interval 25 hours
2100 C$

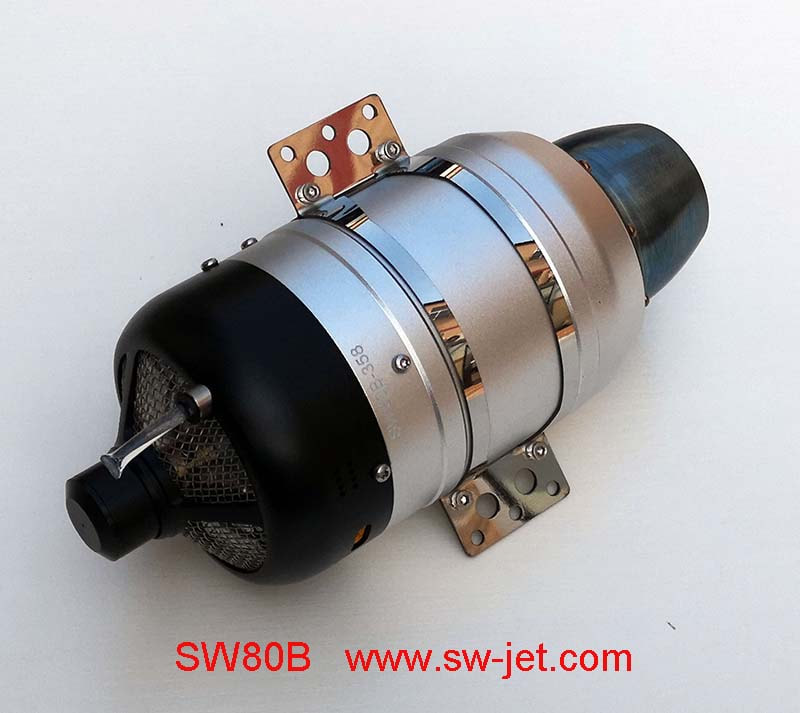

SW 80B

Thrust 80N
RPM Range 50,000 - 155,000
EGT 650 C
Fuel Consumption 270g
Fuel kero or diesel
Lubrication 5% kero 3% diesel
Start full autostart
Restart auto restart
Weight 780g
Diameter 84mm
Length 203mm
Maintenance Interval 25 hours
2400 C$

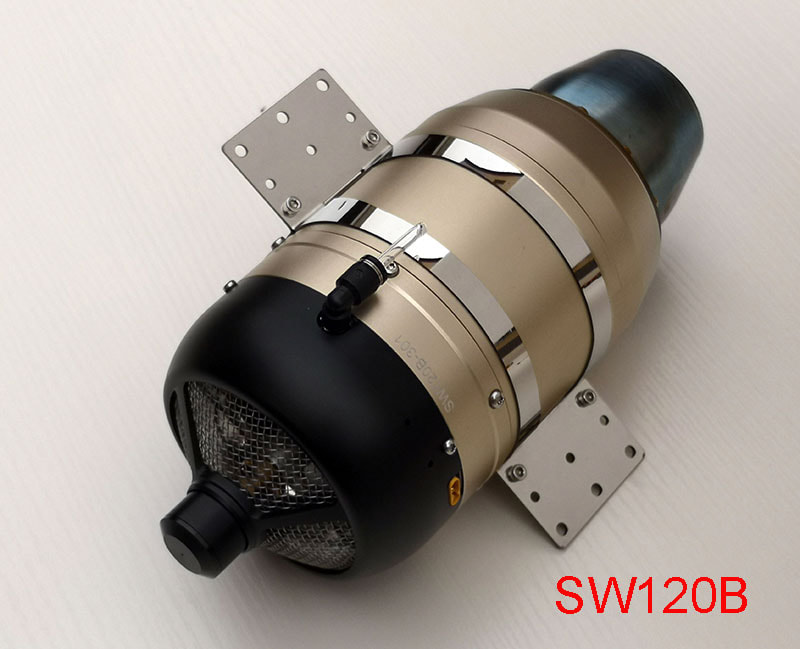

SW 120B

Thrust 120N
​RPM Range 38,000 - 125,000
EGT 650C
Fuel Consumption 350g
Fuel kero or diesel
Lubrication 5% kero 3% diesel
Start full autostart
Restart auto restart
Weight 1255g
Diameter 100mm
Length 250mm
Maintenance Interval 25 hours
2700 C$

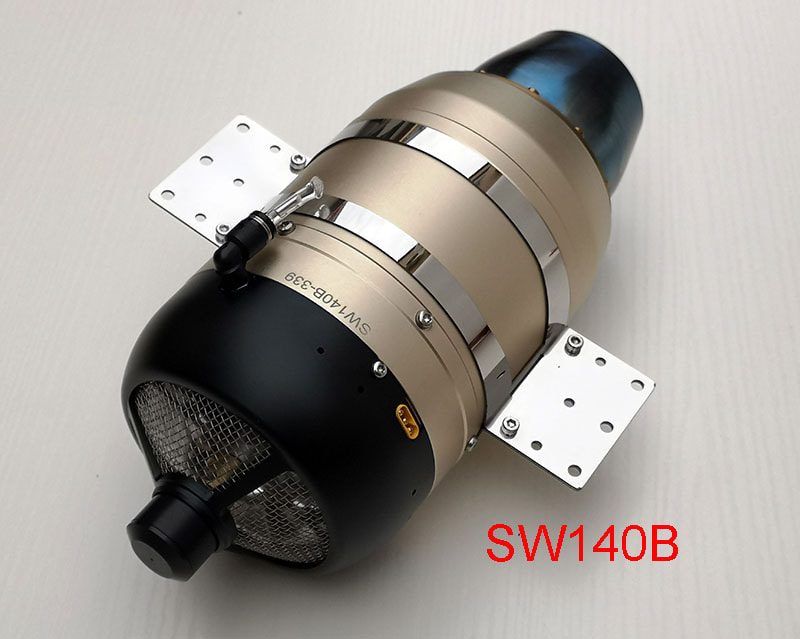

SW 140B

Thrust 140N
​RPM Range 38,000 - 130,000
EGT 650C
Fuel Consumption 380g
Fuel kero or diesel
Lubrication 5% kero 3% diesel
Start full autostart
Restart auto restart
Weight 1255g
Diameter 100mm
Length 250mm
Maintenance Interval 25 hours
2900 C$

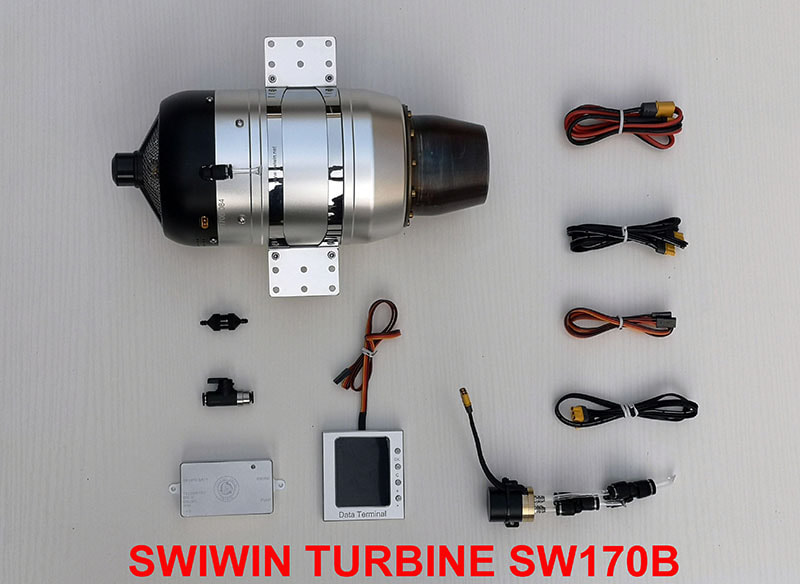

SW 170B

Thrust 170N, 17kg/37.4lb
RPM Range 33,000 - 113,0000
EGT 650C
Fuel Consumption 480g
Fuel kero or diesel
Lubrication 5% kero 3% diesel
Start full autostart
Restart auto restart
Weight 1457g
Diameter 110mm
Length 258mm
Maintenance Interval 25 hours
3300 C$

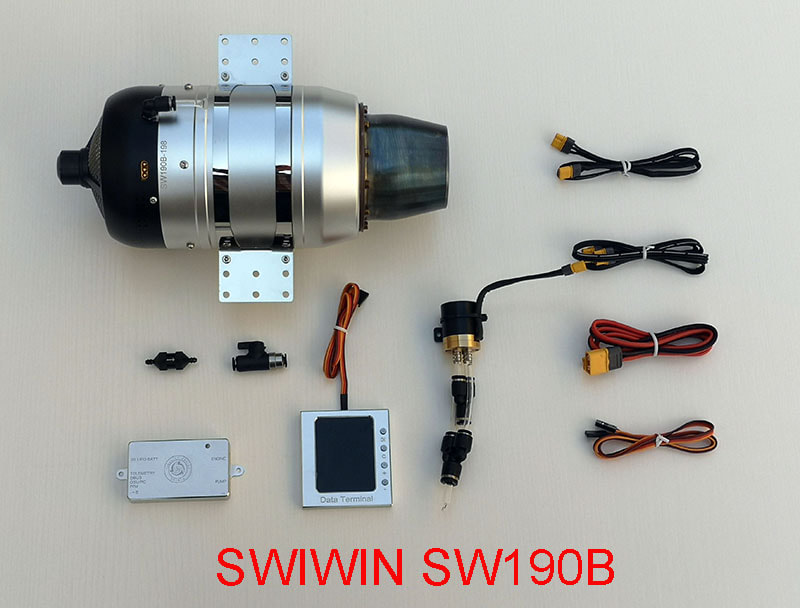

SW 190B

Thrust 190N, 19kg/41.88lb
RPM Range 38,000 - 116,0000
EGT 650C
Fuel Consumption 550g
Fuel kero or diesel
Lubrication 5% kero 3% diesel
Start full autostart
Restart auto restart
Weight 1457g
Diameter 110mm
Length 258mm
Maintenance Interval 25 hours
3600 C$

SW 220B

Thrust 220N, 22kg
RPM Range 38,000 - 115,000
EGT 650C
Fuel Consumption 660g
Fuel kero or diesel
Lubrication 5% kero 3% diesel
Start full autostart
Restart auto restart
Weight 1700g
Diameter 116mm
Length 275mm
Maintenance Interval 25 hours
3800 C$

SW 300B

Thrust 300N, 30kg
RPM Range 35,000 - 98,000
EGT 650C
Fuel Consumption 800g
Fuel kero or diesel
Lubrication 5% kero 3% diesel
Start full autostart
Restart auto restart
Weight 2502g
Diameter 132mm
Length 340mm
Maintenance Interval 25 hours
5600 C$

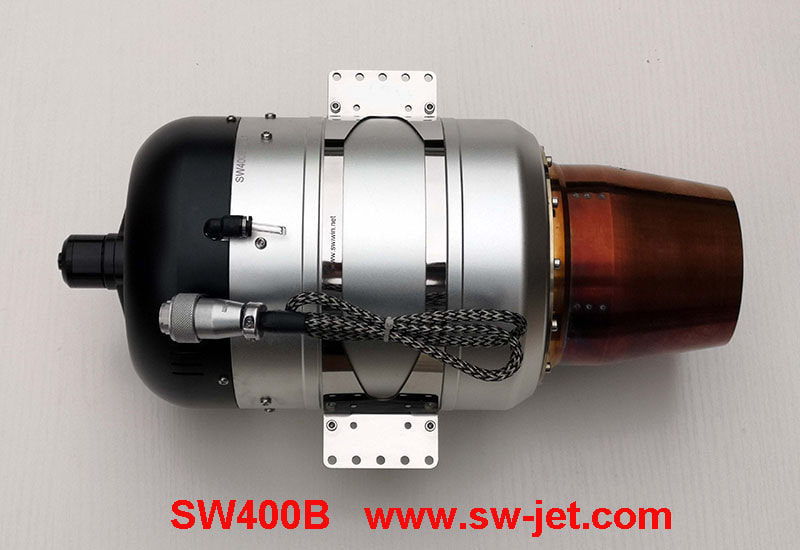

SW 400B

Thrust 400N, 40kg
RPM Range 33,000 - 95,000
EGT 750C
Fuel Consumption 1000g
Fuel kero or diesel
Lubrication 5% kero 3% diesel
Start full autostart
Restart auto restart
Weight 3000g
Diameter 146mm
Length 335mm
Maintenance Interval 25 hours
9700 C$

SW 800B

Diameter 208mm
Length 455mm
Weight 8500g
Max running altitude 10,000m
Max fight speed 300m/s
Startup brushless starter
Max thrust 800N
Fuel consumption 1850g/min
Max RPM 65,000
Idle RPM 20,000
Fuel Diesel or Kerosene
Coming Soon C$
